Production of stainless steel and special alloy products
C.L.A. S.r.l. is a company that has been manufacturing stainless steel and special alloys machinery and equipment for the chemical, pharmaceutical and food industries for over 40 years.
We specialize in process systems for any kind of liquid. We are capable of handling the design, development and construction of entire systems.
We are equipped with a highly qualified in-house technical department and an in-house workshop provided with state-of-the-art technologies.
We offer comprehensive solutions with all-around support, all our systems are designed focusing on the specific requirements of the customer.
ITALY

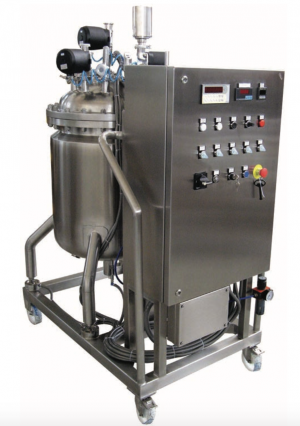

Mobile preparation units
Mobile preparation units for liquid solutions. Injectable and oral solutions, syrups, lavages, etc.
Range: from 10 litres to 300-350 litres.
CIP and SIP can be connected to plant utilities.
Mixing from above or below with magnetic drive guarantees cleanliness, sterility and reduced maintenance Homologation in conformity with directive 97/23/EC (PED) and complete with all necessary documentation for IQ and OQ certifications.
Homologation pressure:
1+4 in the body.
1+3 in the jacket.
Our preparation systems can be equipped with:
Electrical resistors for heating the product.
Vacuum pumps Loading cells.
Heating liquid recirculation pump
Lid lifting system

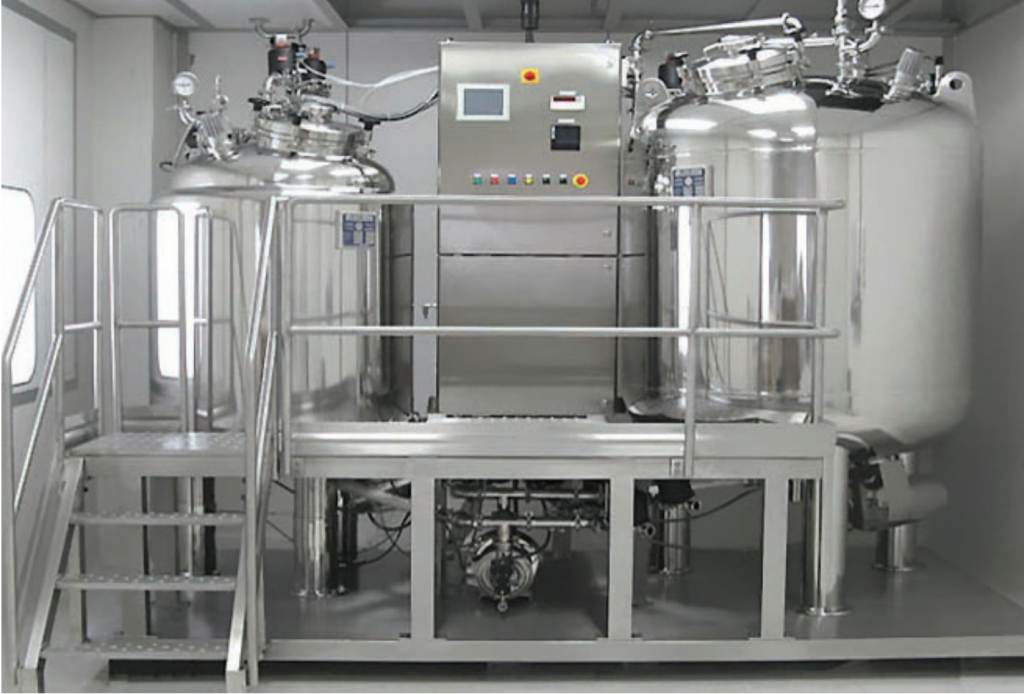

Preparation Systems
Preparation and storage systems for batches of liquid solutions. Injectable and oral solutions, syrups, lavages, etc. Range: from 500 litres to 3,000 litres. CIP and SIP can be connected to plant utilities. Mixing from above or below with magnetic drive guarantees cleanliness, sterility and reduced maintenance.
Homologation in conformity with Directive 2014/68/UE (PED) and complete with all necessary documentation for IQ and OQ certifications. Homologation pressure:
1+6 in the body
1+3 in the jacket
Our preparation systems can be equipped with:
Electrical resistors for heating the product
Vacuum pumps
Loading cells
Heating liquid recirculation pump
Transfer pump

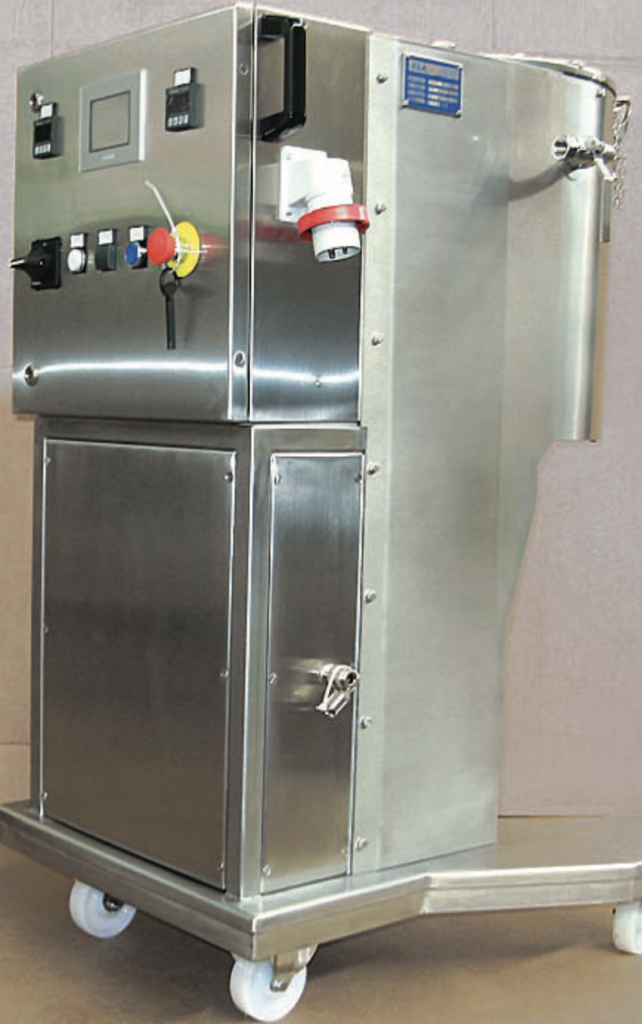

Tablet coating preparation systems
Mobile preparation systema for coating pan solutions. Our range is from 10 litres to 300-350 litres. Completely washable.
They may have mixing from above or below with or without a magnetic drive.
Hot water heating by means of electrical resistors and heating circuit.
Cooling by mains water supply.

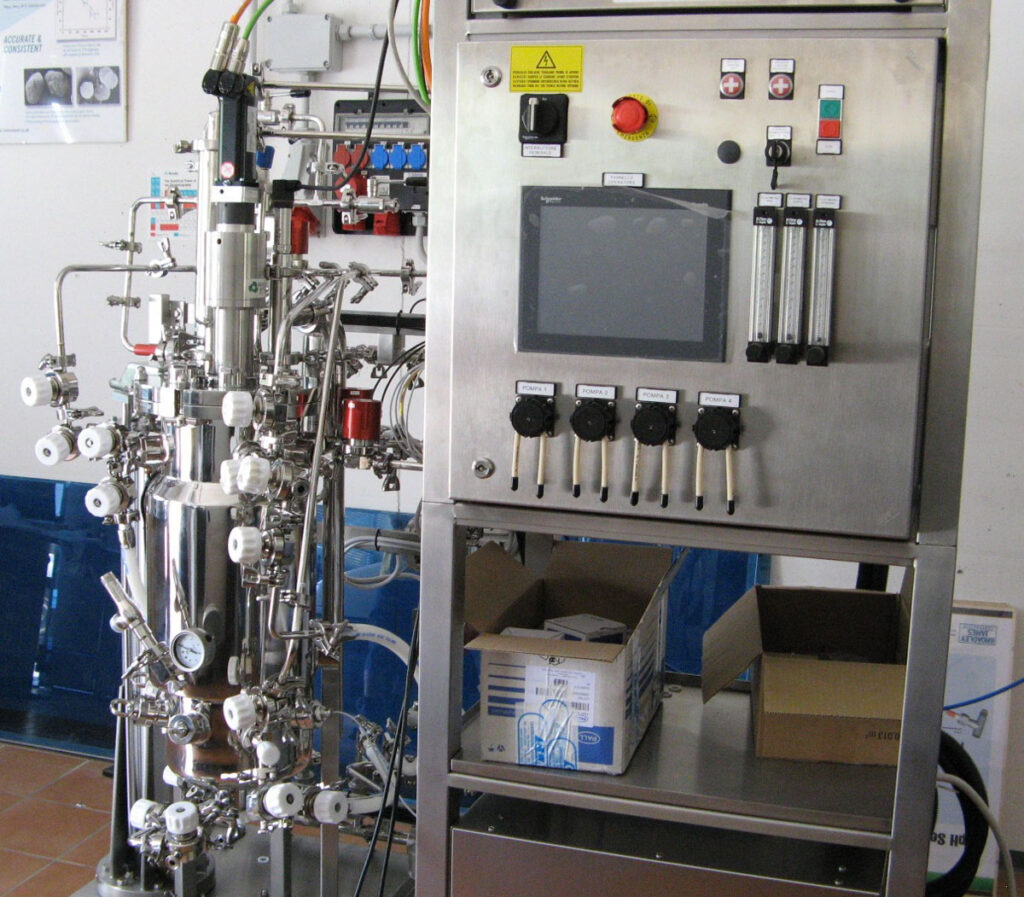

Fermentation systems
Microbial and bacterial fermentation systems Engineered according to the client’s precise technical process specifications (URS)
Range: from 5 litres to 3,000 litres CIP and SIP can be connected to plant utilities or built in (on board)
Mixing from above or below with magnetic drive guarantees cleanliness, sterility and reduced maintenance
Our fermentation systems include:
Control and command panel and process recording
Metering pumps
Heating liquid recirculation pump
Manual and/or automatic valves Steam cut-off on all valves
Sterile filters for process gas
Lid lifting system (upon request)
Steam generator (upon request)
Homologation in conformity with Directive 2014/68/UE (PED) and complete with all necessary documentation for IQ and OQ certifications
Homologation pressure
1+4 in the body
1+3 in the jacket

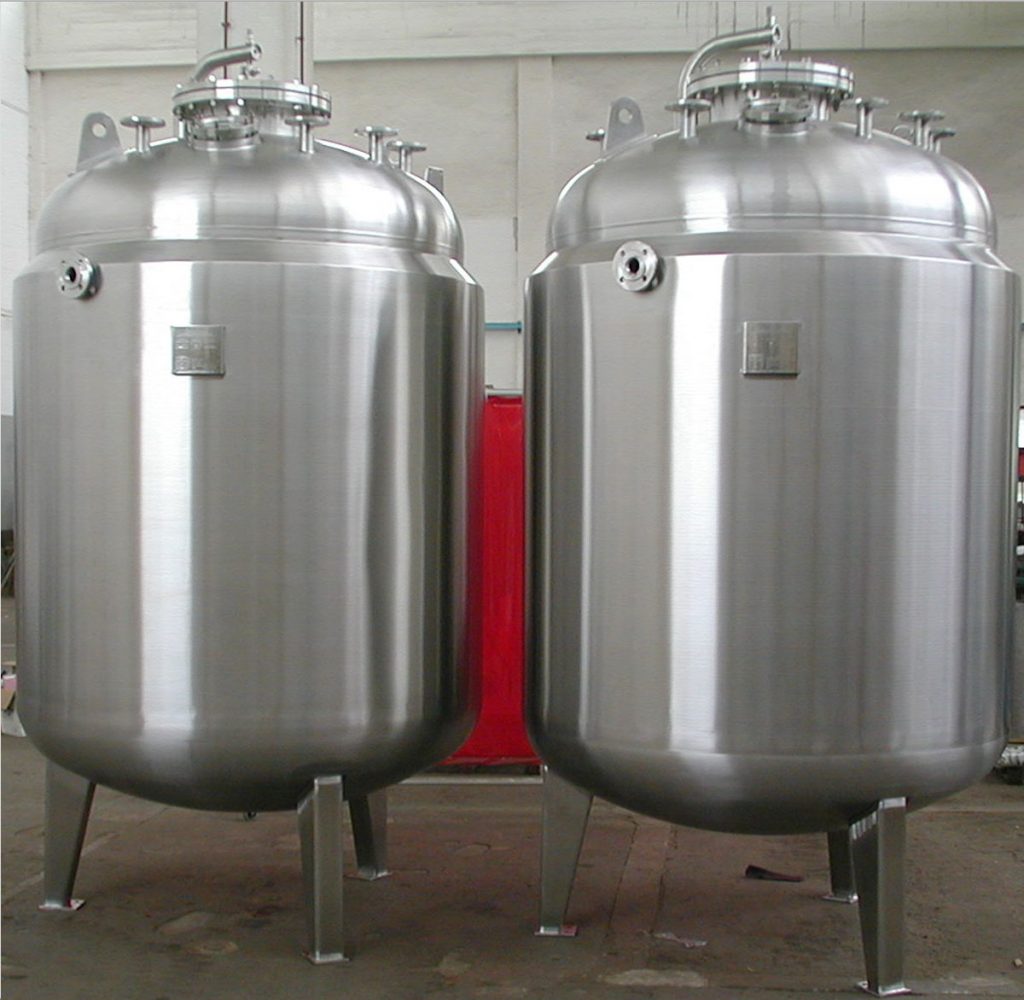

PW-WFI storage tanks
Storage tanks for PW or WFI. Capacity: from 10 litres to 30,000 litres. CIP and SIP can be connected to plant utilities. Internal roughness < 0.5µm. External finish as required. With or without heating/cooling jacket. With or without insulation. Homologation in conformity with Directive 2014/68/UE (PED) and complete with all necessary documentation for IQ and OQ certifications.
Homologation pressure:
1+4 in the body
1+3 in the jacket
Upon request and pending approval, FAT and SAT documents may be issued.

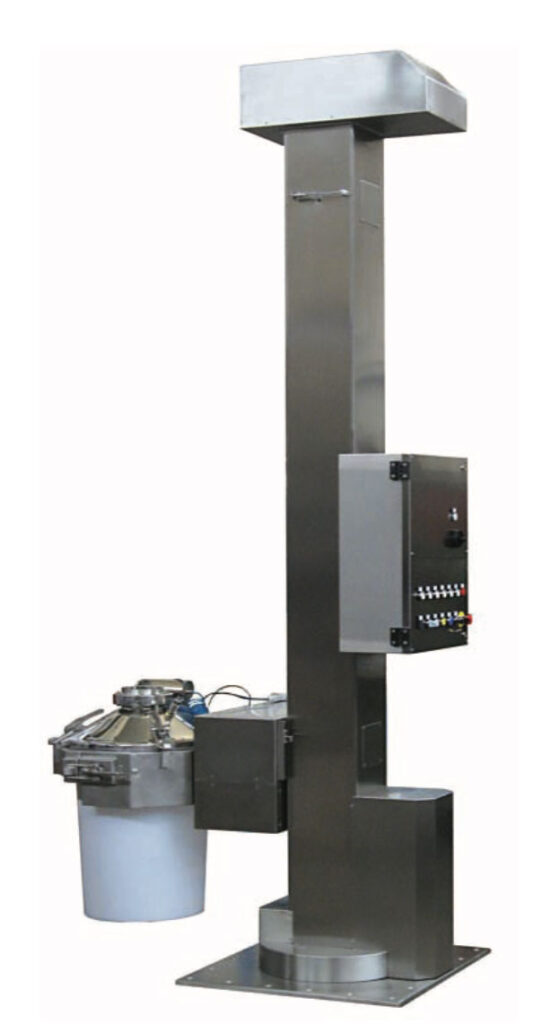

Drum handling column
Column for lifting and turning drums. Made-to-measure for user Capacity: from 10 to 2,500 kg
Elevation: up to 6,000 mm.
Movement: Up-down
Rotation: Horizontal axis drum pincer.
Vertical axis.
