Pharmaceutical Sanitary Accessories
Specializing in valves, control systems, stainless steel fittings Zac was born thanks to ideas and cooperation among experts with more than 20 years of experience in food and pharmaceutical fields.
Their competencies are spread both on the National territory and International businesses.
Their goal is to settle their competences and quality to reach the top level among companies on the national territory.
ITALY

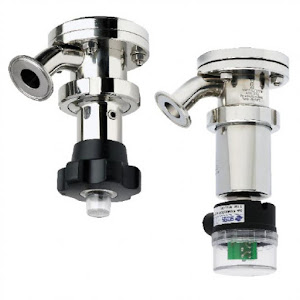

Aseptic Bottom Valves
Aseptic bottom valves flanged with removable body and welding execution have been thought to guarantee a full drenability of the product, avoiding “Dead Leg” formation.
Thanks to this important detail, these valves are used in the pharmaceutical, chemical, and food industries.
Available with pneumatic or manual actuator, fully INOX. Pieces which have direct contact with the product are done by AISI 316 L certificates.
Aseptic Line Valves
The ZAC aseptic line valves have been designed for installation in food, pharmaceutical, and cosmetic process plants.
– Made of AISI 316L (1.4404) steel
-Seal diaphragm: TFM 1705 PTFE USP Class VI WORKING CONDITIONS: -Pressure 6 bar
-Temperature from -10°C to + 150°C -Internal finish standard Ra0.4μ -External mirror polished finish
-Dimensions from 3/4” to 3”
-Connection types: clamp weld fitting
-Position indicators: visual (standard) inductive box (optional) *Material alternatively 1.4435

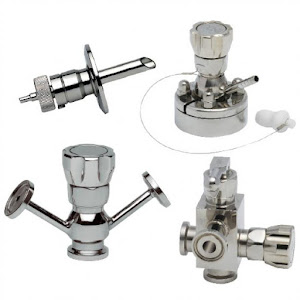

Aseptic Sampling Valves
Manual Aseptic sampling valve AS2
Pneumatic Aseptic sampling valve AS2
Aseptic sampling valve AS1 R
Sanitary sampling cock RPS4
Sanitary sampling cock RPCS

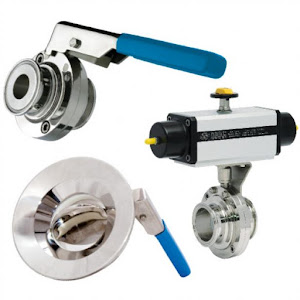

Pharma/Food Butterfly Valves
Manual butterfly valve
Manual actuators for butterfly valves
Pneumatic butterfly valve
Mini butterfly valve

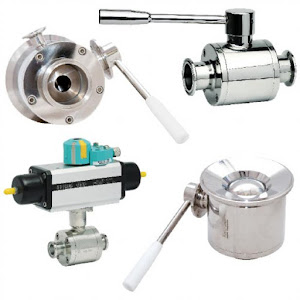

Sanitary Ball Valves
Sanitary ball valves
Manual sanitary ball valve
Pneumatic sanitary ball valve
Pneumatic actuators
Manual ball valve
Valvola a sfera a tre vie

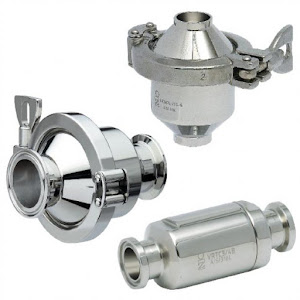

Spring Check Valves
Spring check valves for the pharmaceutical industry

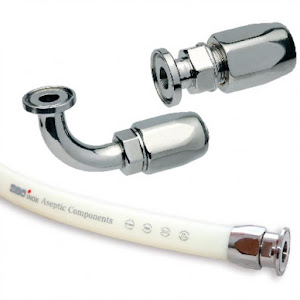

Clamp Fittings Connection Reusable
Re-flex clamp fittings
Throttle Flow Valve
Throttle flow valve
Throttle flow valve
Needle valve

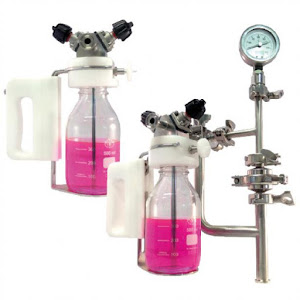

Sterile sampling unit
The sampling unit is suitable to take sterile samples from all liquids in aseptic processes i.e. High purity water, High purity steam, Fermentation processes, Parenteral drugs, etc.
Samples can be taken in a continuous process with pneumatic controlled diaphragm valves or typically as a system with manual valves and a handle bring the complete unit in the laboratory for analyzing the sample in sterile conditions.
Advantages of the SED-Sterile Sampling Unit
• Integral valve unit directly mounted to the sampling bottle
• CIP/ SIP function in one single valve component
• Efficiency in sterilization direct from the point of use
• Autoclavable system
• Less heat transfer
• Compact design
• Material traceability available acc. to EN 10204 3.1

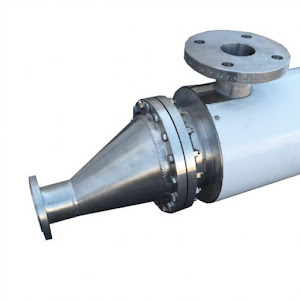

Heat Exchanger
Pharmaceutical heat exchanger INSTANTANEOUS single pass is made with SMOOTH seamless tubes.
The tubes are expanded to the tube plates to ensure greater resilience.
The preferred choice is usually without an expansion joint, but it can be installed for particularly demanding conditions.
Sanitary double tubesheet heat exchangers are made to avoid contamination between the primary fluid and the secondary fluid (FDA Standard).
They can be constructed for vertical or horizontal installation, to heat or cool, or a combination of the two alternating phases.
The outer coating of the thermal insulation with external finishing in completely sealed and polished AISI 304 stainless steel.

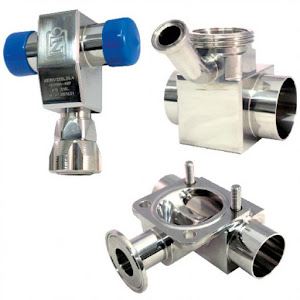

Zero Dead Leg valves
The Zero Dead Leg valves designed and manufactured by ZAC S.r.l. represent the new modular aseptic system to integrate the zero static ZDL point of use with various flow control and sampling instruments on the WFI loops.
ZAC ZDL valves are specifically designed to guarantee complete drainability preventing the accumulation of product residues and “dead points”, allowing its application in chemical- pharmaceutical processes where compliance with FDA regulations is indispensable.
ZAC S.r.l. provides greater safety throughout high purity processes.
Double action valves and relief valves
Double action valves
Relief valves

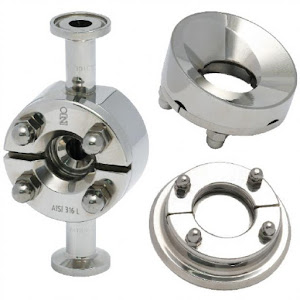

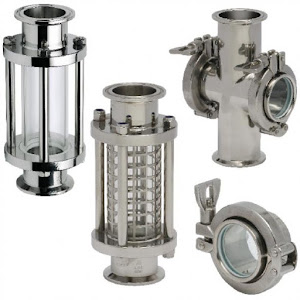

Sight glass flow indicator
Sight glass flow indicator
Sight glass flow indicator
Flat sight glasses
BTA tank connections
BTA tank connections for pharmaceutical industry

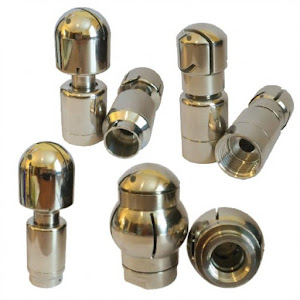

Spray balls
ZAC’s sprayball are particular suitable for use in foodstuffs sector and specially for preserves, milk, wine, soft drinks, mineral water and in the Pharmaceutical-Chemical sector, etc.
In fact, they are used for washing cisterns, concentrators, horizontal and vertical tanks, tank trucks and surge tanks. Washing and descalling the above equipment can only be carried out efficiently with the use of cold or hot chemical solutions, applied on all dirty walls and for a certain lapse of time.
The ZAC’s cleaning system with sprayballs is quick, simple and effective: it also allows use of boiling water for the washing, which wouldn’t be possible in manual washing il allows automation of washing programmes and the absence of mobile parts avoid the risk of wear even after a long period of use.

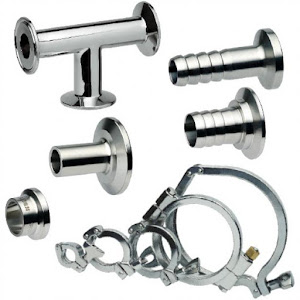

Clamp fittings B.S.
B.S. Clamp Ferrules
B.S. Elbow Clamp
B.S. tee and cross Clamp
B.S. Adapters and reducers
B.S. ASME/BPE heavy duty clamp
B.S. clamp gaskets
B.S. ASME/BPE Clamp fittings

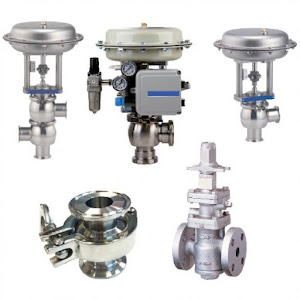

Control Valves
Control Valves for the pharmaceutical industry
Diaphgram Valves
Diaphgram valves for the pharmaceutical industry
